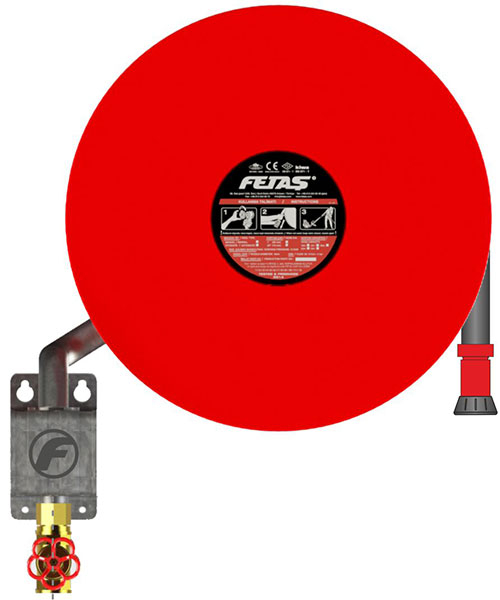

FIRE HOSE REELS F 300 Series

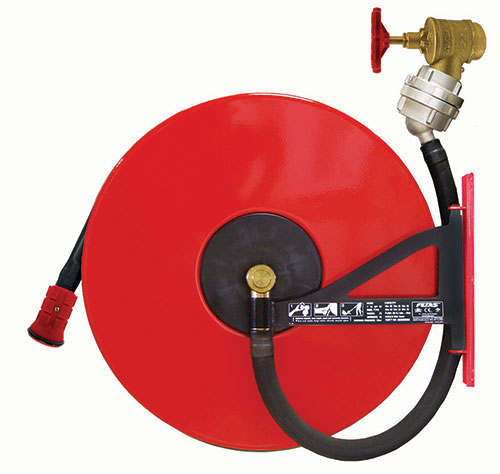

F 300 Series
Fetaş F 300 series fire hose reels are a product group designed for the general purpose of against the fire and can be easily used by everyone. Suitable for shaft space and similar area applications in structures. It is one of the indispensable accessories of modern architects, as well as the functionality of the fire hose reel, which creates a visual impact in the places where it is used and provides easy access in case of an emergency.
GENERAL FEATURES
Swinging type fire hose reel with 20m – 30m semi-rigid hose. Demountable fire hose reels suitable for indoor usage, EN 671-1 standard, CE approved.
GALLERY

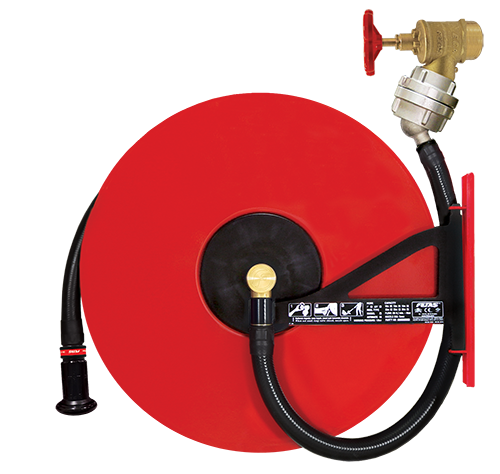

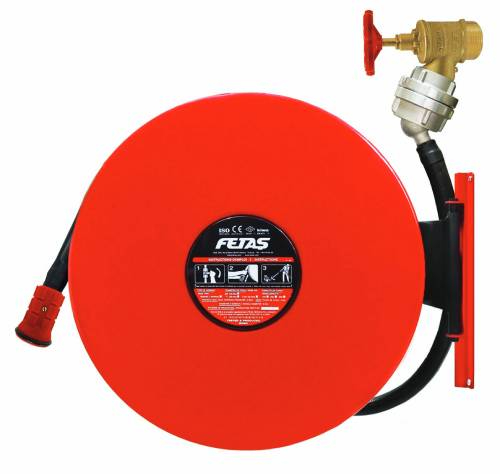

F 300 Series Type 1
Hose Reel Type - 1
- The reel system is manufactured in accordance with EN 671-1 standard
- It is central water-fed, 270° swing arm type, semi-rigid hose reel.
- RAL 9005 black, polyester powder coated reel handle, with silkscreen printed pictographic instructions for use.
- Pressed-reinforced reel mounting plate made of 2mm DKP sheet, which can be fixed to the wall.
- All waterways are made of brass and corrosion-resistant composite materials.
- Iron phosphate coating on DKP steel material and topcoat polyester powder paint coating.
- The service cover, which contains serigraphy printing, pictographic usage and product information, provides ease of maintenance.
- DN 52 – PN 16 brass fire valve and Storz coupling in Light Alu.
- DN52 -DN25 tail Storz adaptor in light Alu.
- Reel hub in brass material with 4 o-ring seals and bearings.
- Semi-rigid fire hose in accordance with EN 694 standard.
- Reinforced semi-rigid interconnection hose conforming to EN 694 standard.
- DN 25 jet-spray-off nozzle.
- Galvanized ring press, plastic tubing covered connection points.
- Standard colors are RAL3002 red, RAL 9010 white, RAL 9005 black. It can also be produced in a different color in the desired RAL code or as Matt (Satined) / Glossy (Polished) stainless chrome.
- Reel system that has passed 100% leak seal and quality tests.

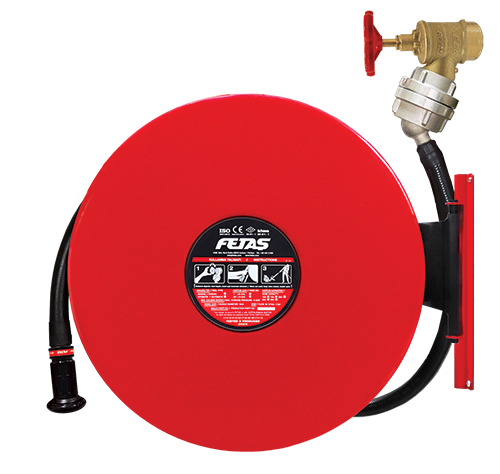

F 300 Series Type 2
Hose Reel Type 2
- The reel system is manufactured in accordance with EN 671-1 standard
- It is central water-fed, 270° swing arm type, semi-rigid hose reel.
- Concealed type reel handle with Ral 9005 black polyester powder coating, functioning behind the hose reel.
- Pressed-reinforced reel mounting plate made of 2mm DKP sheet, which can be fixed to the wall.
- All waterways are made of brass and corrosion-resistant composite materials.
- Iron phosphate coating on DKP steel material and topcoat polyester powder paint coating.
- The service cover, which contains serigraphy printing, pictographic usage and product information, provides ease of maintenance.
- DN 52 – PN 16 brass fire valve and Storz coupling in Light Alu.
- DN52 -DN25 tail Storz adaptor in light Alu.
- Reel hub in brass material with 4 o-ring seals and bearings.
- Semi-rigid fire hose in accordance with EN 694 standard.
- Reinforced semi-rigid interconnection hose conforming to EN 694 standard.
- DN 25 jet-spray-off nozzle.
- Galvanized ring press, plastic tubing covered connection points.
- Standard colors are RAL3002 red, RAL 9010 white, RAL 9005 black. It can also be produced in a different color in the desired RAL code or as Matt (Satined) / Glossy (Polished) stainless chrome.
- Reel system that has passed 100% leak seal and quality tests.

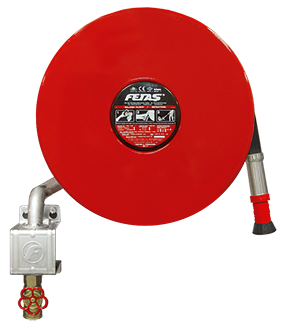

F 300 Series Type 3
Hose Reel Type 3
- The reel system is manufactured in accordance with EN 671-1 standard
- It is a semi-rigid hose reel with central water supply, 270° oscillating tube sleeve type.
- Concealed type, twisted galvanized pipe, reel arm working behind the hose reel.
- Reel wall mounting plate which is manufactured by 4mm DKP sheet that can be fixed to the wall, reinforced with the press, and galvanized.
- Specially designed galvanized reel body to prevent hose breakage.
- Reel wheels are iron phosphate coated on DKP steel material and the topcoat is RAL 3002 polyester powder paint.
- The screen-printed service cover, which contains usage instruction and product information, provides ease of maintenance.
- Brass stop valve DN 33 – PN 16.
- Brass material reel hub with double o-ring seal and bearing.
- Semi-rigid fire hose in accordance with EN 694 standard.
- DN 38 jet-spray-off nozzle and chrome hose port.Galvanized ring press, plastic tubing covered connection points.
- Standard colors are RAL3002 red, RAL 9010 white, RAL 9005 black. It can also be produced in a different color in the desired RAL code or as Matt (Satined) / Glossy (Polished) stainless chrome.
- Reel system that has passed 100% leak seal and quality tests.
