F 400 Series

Fetaş F 400 series fire reels are a product group designed for general purpose fire fighting and can be easily used by everyone. It is suitable for applications independent of walls in buildings. It is among the indispensable accessories of today's architects, as well as the functionality of the fire reel, which creates a visual effect in the places where it is used and provides easy access in case of emergency.

GENERAL FEATURES

Fixed type fire reels with 20m – 30m semi-rigid hose. Demountable fire reels, suitable for indoor and outdoor use, in EN 671-1 standard, CE approved.

TECHNICAL INFORMATION

F400 CHART

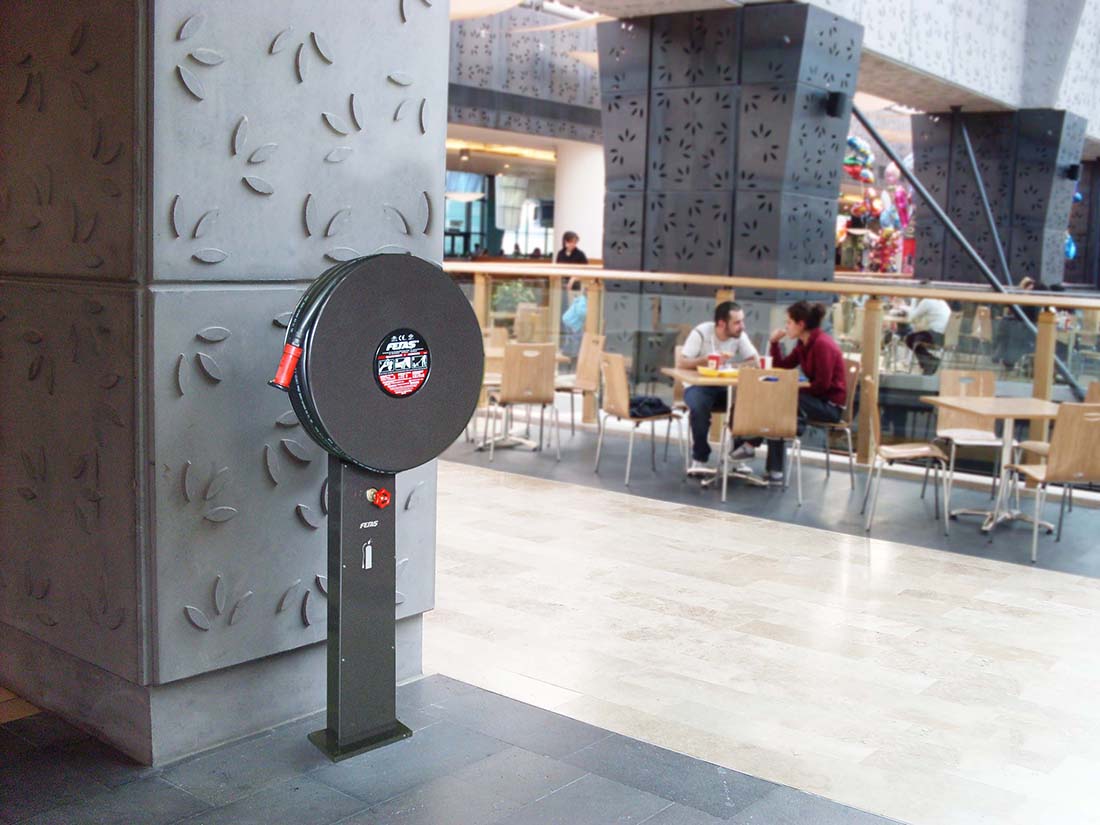

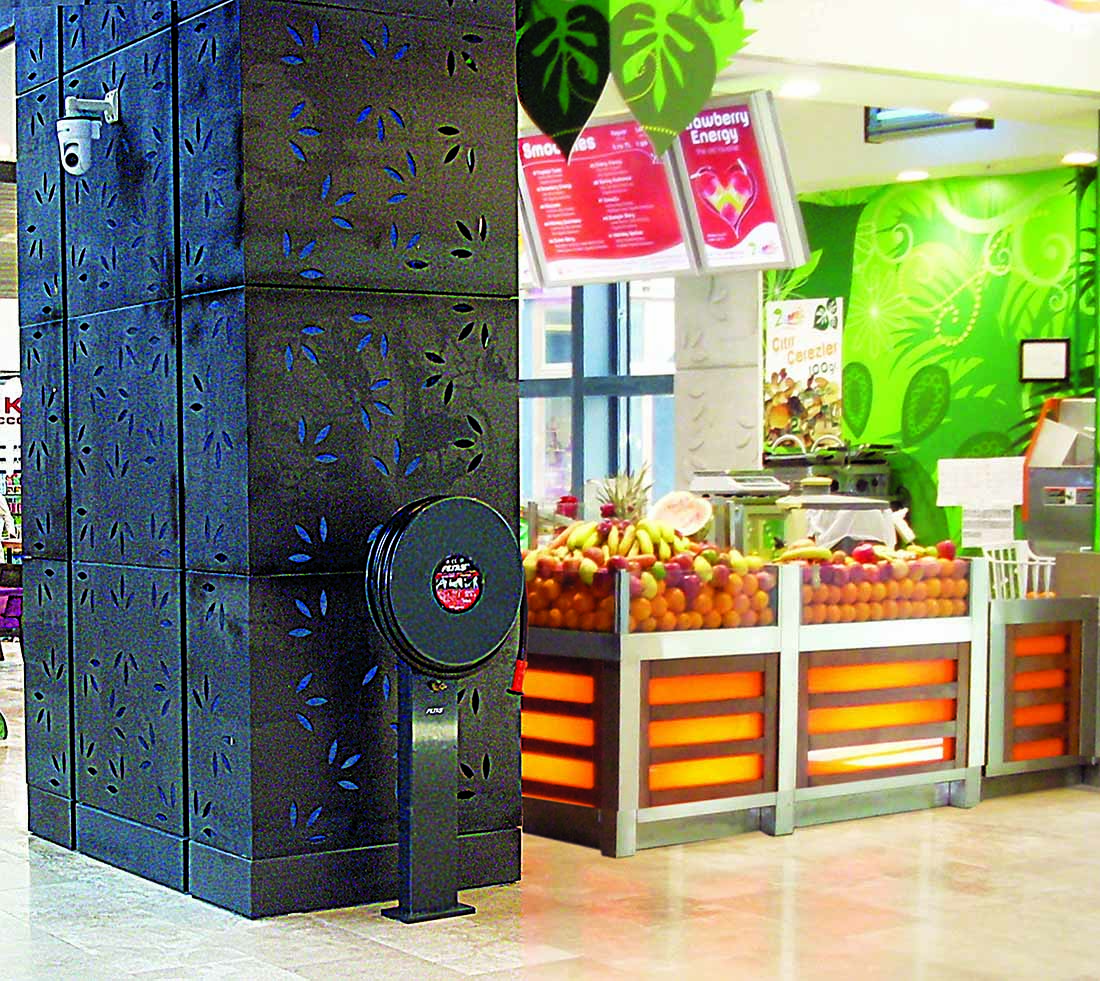

GALLERY

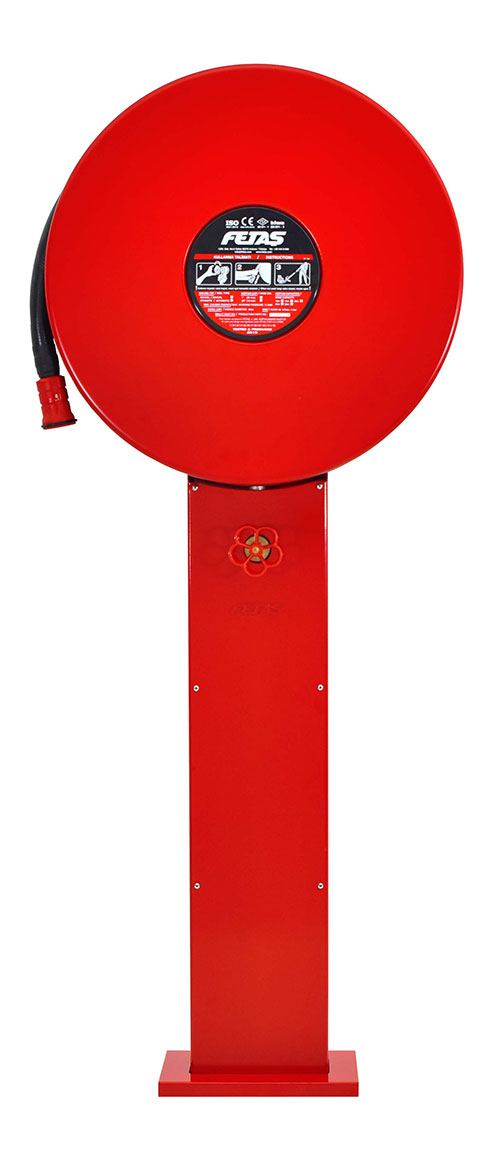

F 400 Series

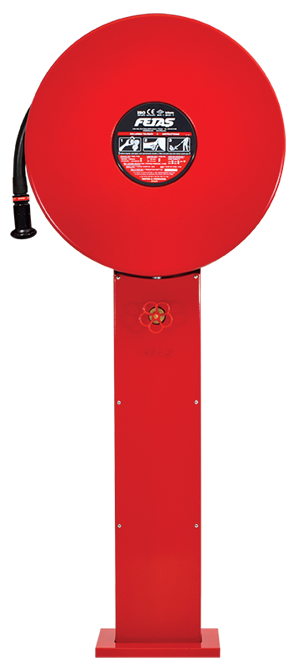

RAL 3002

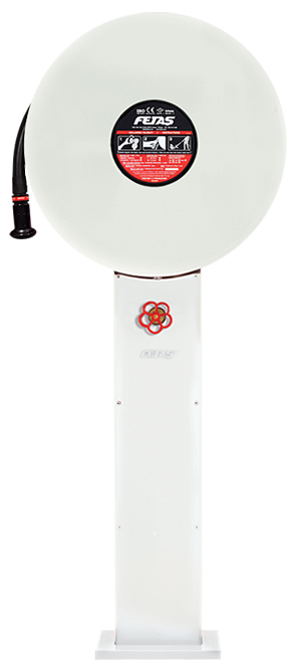

RAL 9010

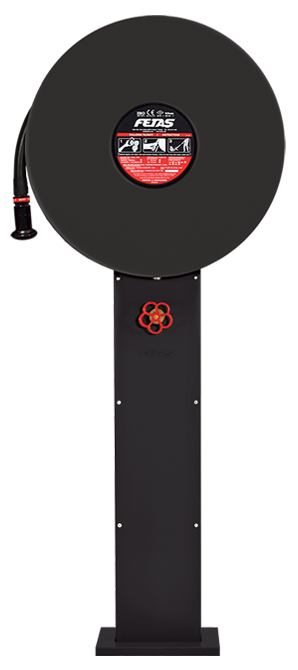

RAL 9005

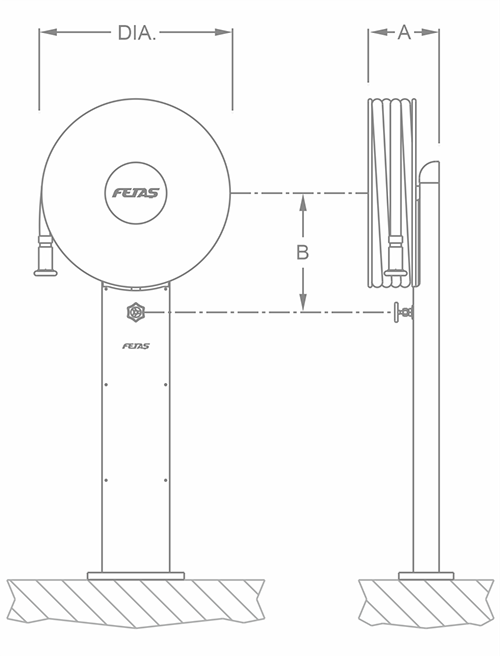

DIM. (mm)

MODEL	HOSE	DIAMETER	A	B	DOWNLOAD
F 4192 M	DN19 \| 20M	Ø470	220	370	PDF \| DWG
F 4193 M	DN19 \| 30M	Ø600	220	370	PDF \| DWG
F 4251 M	DN25 \| 15M	Ø470	220	370	PDF \| DWG
F 4252 M	DN25 \| 20M	Ø600	220	370	PDF \| DWG
F 4253 M	DN25 \| 30M	Ø600	220	370	PDF \| DWG

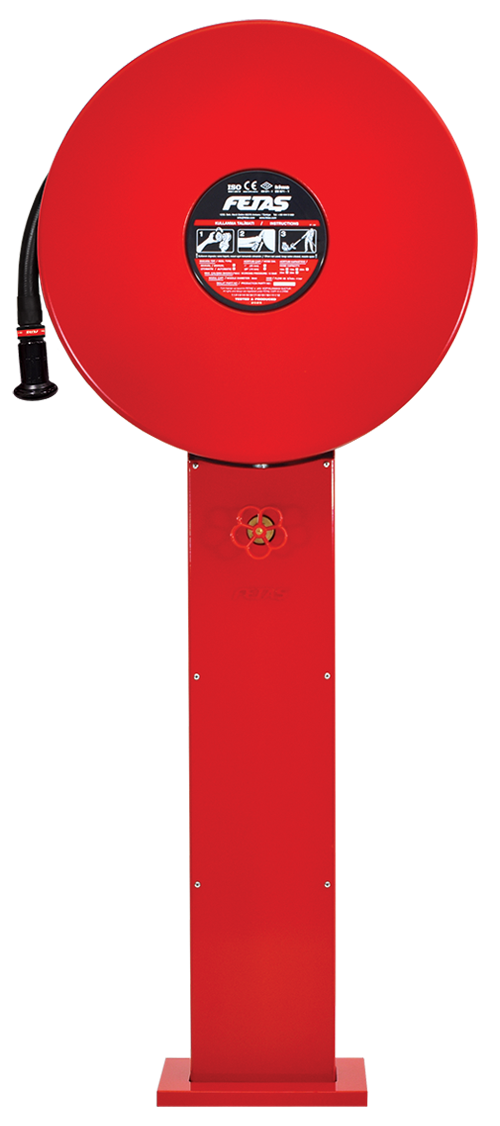

Self Standing Hose Reel

The reel system is manufactured in accordance with EN 671-1 standard
It is a central water-feeding semi-rigid hose reel, fixed to the floor.
Thanks to the double bent edges of the fixed column part and internal reinforcement elements, its rigid structure does not deteriorate and it has a long life.
Installation and fittings are hidden thanks to the removable cover in the front of the column.
Ground connection flange and flange cover are available.
It provides quick and easy assembly thanks to its self-channeled, galvanized mounting plate and plug plate.
All waterways are made of brass and corrosion-resistant composite materials.
Iron phosphate coating on DKP steel material and topcoat polyester powder paint coating.
The service cover, which contains serigraphy printing, pictographic usage and product information, provides ease of maintenance.
DN 25 – PN 16 brass globe valve.
DN 19 galvanized pipe between reel hub and fire valve
Reel hub in brass material with 4 o-ring seals and bearings.
Semi-rigid fire hose in accordance with EN 694 standard.
Hose guide that helps pull the hose in the desired direction (Optional).
DN 25 jet-spray-off nozzle
Galvanized ring press, plastic tubing covered connection points.
Standard colors are RAL3002 red, RAL 9010 white, RAL 9005 black. It can also be produced in a different color in the desired RAL code or as Matt (Satined) / Glossy (Polished) stainless chrome.
Reel system that has passed 100% leak seal and quality tests.
